Description

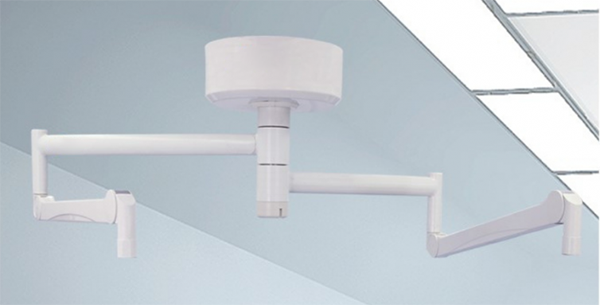

Description of shadowless surgical lamp.

Central axis rotation device with safe bearing design. Satellite oval hanger design for 4 arm installation.

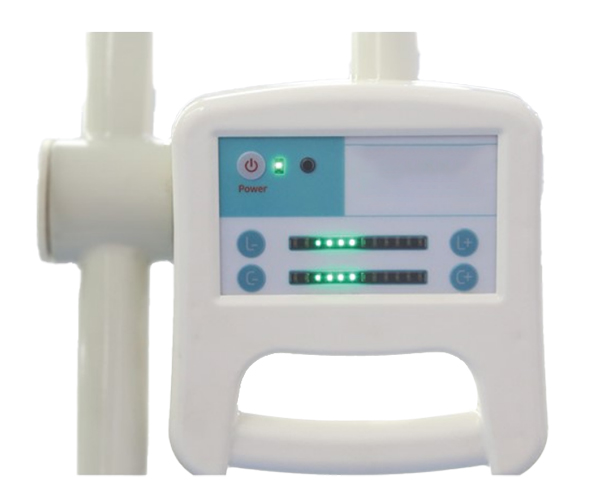

Stepless Dimming, with Backlight Illumination. Control Panel at the Joint of Large and Small C Arms, with Brightness Prompt Function.
Lamp Life 60000 Hours, Standard Color Temperature Adjustable Function.

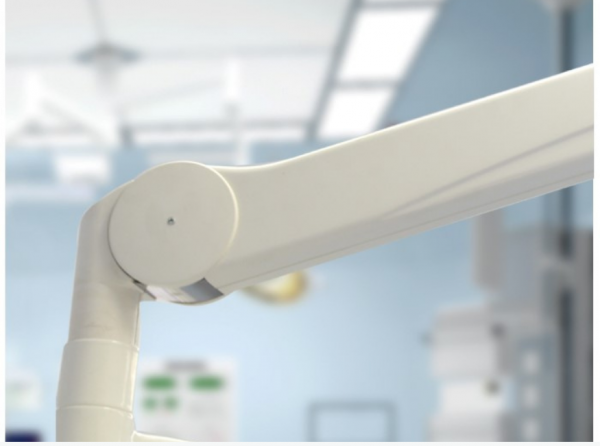

Each arm has 3 joints, with fatigue correction device and positioning feel adjustment device.

Specification

Model	LED720/520
Luminance	160,000/120,000lux
Color temperature	4300±500K
Color indication index	≥97Ra
Spot diameter	130-350mm
Illumination depth	140/140cm
Illumination-adjusting	10-100%
Light-adjusting mode	Eight grade
Source	LED
Bulb Power	1W/pc
Average service life	>50000hrs
Installed range(standard arm)	2800-3200mm
Power supply	230V/110V,50~60Hz
Temperature at surgeon’s head	≤1℃
Optional	Emergency battery, camera system

Shadowless surgical lamp
